  • Medical and diagnostic devices
  • ВАТ41-1
  • add to cart



  • Description: BAT41-1 - first professional monitor of ABP and heart rate for consumptive use which is ntended for single measuring and daily monitoring of ABP and heart rate. This monel is a simplified version of the monitor ВАТ41-2.

    Price: ask the manager

    Quantity in stock: ask the manager



    Manufacturer: ICS-TECH LTD.

    Features:


    Fast and precise measuring while pumping.
    Mode of daily monitoring - automatically measuring of ABP and heart rate after specified periods of time with saving of measurements results, date and time of measuring in devices memory.
    Memory on 600 measurings.
    Wireless communication interface with PC - Bluetooth.
    Designed jointly with specialists of the Strazhesko Institute of Cardiology, Academy of Medical Sciences of Ukraine.

    Technical characteristics:


    Pressure measurement range - from 20 to 280 millimeters of mercury.
    Heart rate measurement range - from 30 to 180 bpm.
    Limits of basic absolute error when measuring pressure - ±3 millimeters of mercury.
    Limits of relative error when measuring heart rate - ±5% from measured rate, bpm.
    Voltage of internal power supply which consists of two batteries, type ААА, - from 3,2 V to 2,0 V.
    Current, consumed by device from power supply, do not exceed: 500 mA at air pumping, 1 mA in the mode of indication of current time.
    Battery gauges pull-in voltage - (2,0 ± 0,05) V.
    Quantity of measurements which can be saved in memory - not less then 600.
    Daily monitoring durability - up to 72 hours.
    Communication interface with PC - wireless.
    Range of operating devices working temperatures - from 10 to 35°С,
    Relative humidity - 30-85 %.
    Overall dimensions of electronic module - 92x51x24 mm.
    Weight of electronic module with battery do not exceed 0,12 kg.
    Average life time - 7 years.
    In intervals between measurements the device indicates current time and it also has built-in alarm.

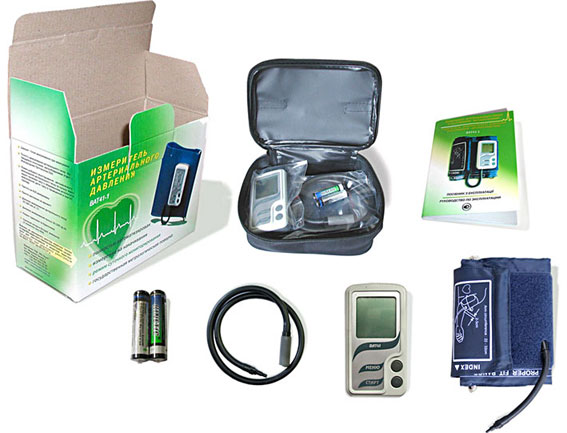

    BAT41-2 supply set:


    Electronic module
    Medium adult cuff
    Extender
    Batteries (ALKALINE) 4 ps. ААА




    Safety of operation is guaranteed by constructive characteristics and functions:


    This is the device with internal power supply and it meets the case of the State Standard 3798-98, type BF;
    The device automatically depressurizes when pressure exceeds 300 mm of mercury;
    Next measuring is possible only in 30 seconds after previous measuring;
    измеритель автоматически прекращает измерение, если его продолжительность превышает 120 секунд, и сбрасывает давление в манжете;
    The device automatically stops measuring if its duration exceeds 120 seconds and depressurizes the cuff;
    The measuring instrument is also equipped with additional patients protectors which do not allow exceeding max pressure in the cuff 300 mm of mercury and max time of measuring 120 seconds. If such protector actuates the cuff depressurizes and the device beeps.
